Belleville Spring Stack Calculator. These components are held in place by a stack of belleville spring washers retained by a ceramic cap. Contents the basics flat washers spring rate and stacking understanding load, stress, and fatigue life belleville spring specifications presetting.

Belleville Disc Spring Stack Design Calculator from www.scribd.com

This spring disc was subsequently termed a belleville. The dwg says that the spring force is 33 lbs. Designed as per americal standar in imperial units.

Source: dsigngo.blogspot.com

This spring disc was subsequently termed a belleville. The dwg says that the spring force is 33 lbs.

Source: classic.sdss.org

However, the information provided is theoretical and may sometimes be necessary to consider other factors of the application, such. The dwg says that the spring force is 33 lbs.

Source: shimrestacker.com

The number of springs used in a series stack is not as much of an issue as in parallel stacks. A belleville spring is a conical shaped disc that will deflect (flatten) at a given rate.

Source: www.scribd.com

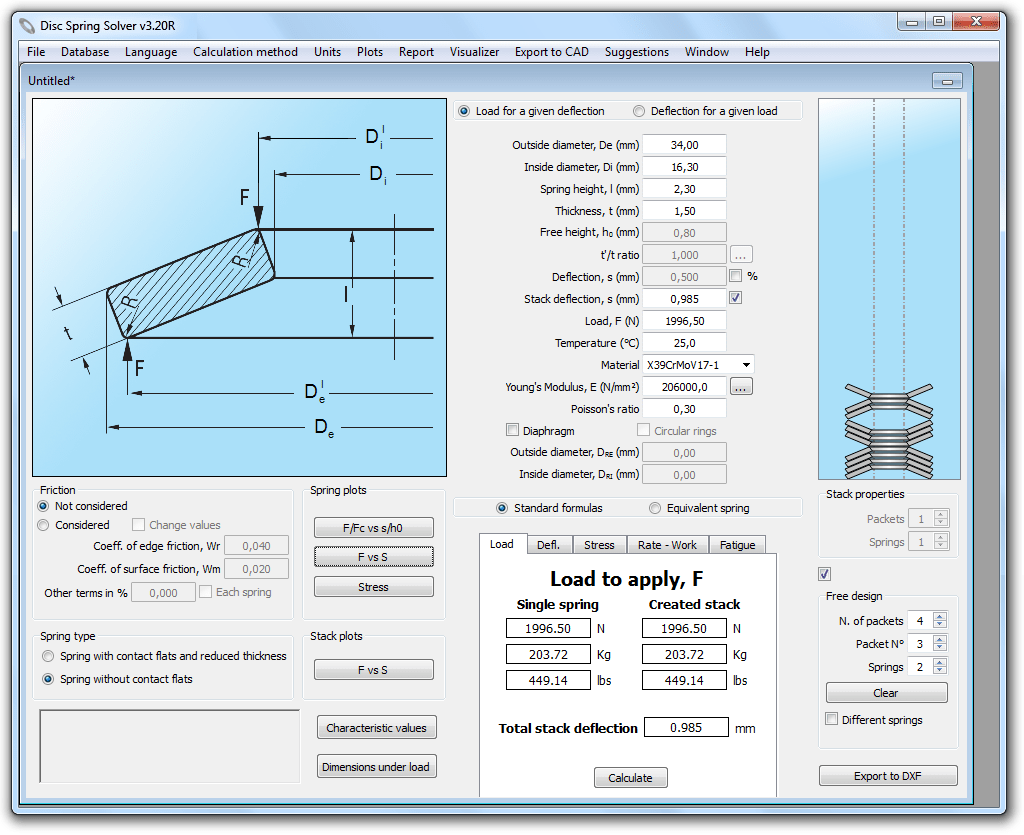

This new version includes the possibility to evaluate the performance of a disc spring used as a diaphragm, that is, depressed beyond the flat level. Remove security settings prior to downloading to allow macros.

Source: www.slideshare.net

Contents the basics flat washers spring rate and stacking understanding load, stress, and fatigue life belleville spring specifications presetting. To calculate the spring response of a stack of disc (belleville) springs.

Source: www.dssolver.com

Key in the required number of springs or spring packages to be stacked in series in the left input field. Contents the basics flat washers spring rate and stacking understanding load, stress, and fatigue life belleville spring specifications presetting.

Source: www.indiamart.com

Design tab spring panel belleville and click the calculation tab. Key in the number of springs stacked in parallel to form a package in the right input field.

Source: www.xmdiscsprings.com

To calculate the spring response of a stack of disc (belleville) springs. This spring disc was subsequently termed a belleville.

Source: www.slideserve.com

Designed as per americal standar in imperial units. By using disc spring singularly or stacked in combinations variable.

Source: mubea-discsprings.com

This spring disc was subsequently termed a belleville washer after the name of its inventor, julian f. Belleville springs has been trading in the spring industry for over 40 years and is a leading uk manufacturer and stockist of disc springs and belleville washers.

Source: www.dssolver.com

This spring rate is usually very high, allowing the spring to produce very large loads in a very small space. Belleville springs has been trading in the spring industry for over 40 years and is a leading uk manufacturer and stockist of disc springs and belleville washers.

Source: www.thumpertalk.com

Designed as per americal standar in imperial units. This spring disc was subsequently termed a belleville.

Source: www.dssolver.com

Design tab spring panel belleville and click the calculation tab. This sheet calculates the spring response for a disc spring stack with no contact flats using.

Source: www.tande.com.tw

About stacking formulas additional design information. How to use mubea disc spring’s calculator tool.

Source: dsigngo.blogspot.com

Calculate disc springs with geometry and properties according to din 2093. Design tab spring panel belleville and click the calculation tab.

Source: www.winsite.com

This spring disc was subsequently termed a belleville. Where, k = estimated nut friction factor.

Source: www.shimrestackor.com

This spring disc was subsequently termed a belleville washer after the name of its inventor, julian f. Calculate disc springs with geometry and properties according to din 2093.

Source: www.slideserve.com

Key in the required number of springs or spring packages to be stacked in series in the left input field. This type of springs allows to carry out combinations of them in a.

Source: www.slideserve.com

To calculate the spring response of a stack of disc (belleville) springs. Key in the required number of springs or spring packages to be stacked in series in the left input field.

Source: www.keybellevilles.com

D = nominal bolt diameter. This spring disc was subsequently termed a belleville.

Designed As Per Americal Standar In Imperial Units.

How to use mubea disc spring’s calculator tool. In this calculation, a belleville spring with an inner diameter d 1, outer diameter d 2 and height h is considered. The number of springs used in a series stack is not as much of an issue as in parallel stacks.

Key In The Required Number Of Springs Or Spring Packages To Be Stacked In Series In The Left Input Field.

The spring is made of a material with thickness t. Belleville springs has been trading in the spring industry for over 40 years and is a leading uk manufacturer and stockist of disc springs and belleville washers. Calculate disc springs with geometry and properties according to din 2093.

About Stacking Formulas Additional Design Information.

The slight or aggressive conical shape gives the washer a spring characteristic and action. D = nominal bolt diameter. Use our free online calculator!

This Spring Disc Was Subsequently Termed A Belleville.

Every spring has its own. This spring disc was subsequently termed a belleville washer after the name of its inventor, julian f. This type of springs allows to carry out combinations of them in a.

Design Tab Spring Panel Belleville And Click The Calculation Tab.

The widely accepted formula is as follows, t = k*f*d. Disc springs are often stacked to enhance performance characteristics. Stacking in series and parallel (sets of successively mounted springs are assembled reversely) in the design tab, select a spring type or a spring set, and specify the.
